Wires, Cables & ProtectionPerforatedLadderHDGI
Cable Trays & Management
Overview
Perforated, ladder and solid-bottom tray with the couplers, bends and tees to route it — and the finish chosen for where it actually runs.
In this range
- Perforated cable trays
- Ladder cable trays
- Solid-bottom trays
- Couplers, reducers & joint plates
- Horizontal tees, crosses & elbows
- Support channels & brackets
Key ratings
- Standard
- IS 1079:1994 / IS 513:1994 (CRCA mild steel)
- Widths
- 50, 75, 100, 150, 200, 300 & 450 mm
- Heights
- 25, 40 & 75 mm
- Thickness
- 1.2, 1.6 & 2.0 mm
- Standard length
- 2500 mm
- Finishes
- HDGI, GI, powder coated or enamel painted
- Galvanising
- Pre-galvanised or hot dip, 99.99% pure zinc
Supplied & applied
Choosing between them
Ladder tray is the most common and most economical type, and gives the cables maximum ventilation. Solid-bottom tray eliminates cable sag and gives the most protection. Perforated sits between the two.
The finish is a siting decision, not a budget one. HDGI is for outdoor, coastal, humid and harsh industrial runs. GI covers roughly seventy per cent of ordinary industrial use — cost-effective, and self-healing where a scratch exposes the steel. Powder coating gives the best finish but is indoor only: in direct sunlight it fades and peels.
2 ranges
What we stock.
The lines we carry in this category, grouped by type. Tell us the make and model, or the duty, and we'll quote it from authorised-channel stock.
Trays & Accessories
Specified as a system — the fittings have to match the run.

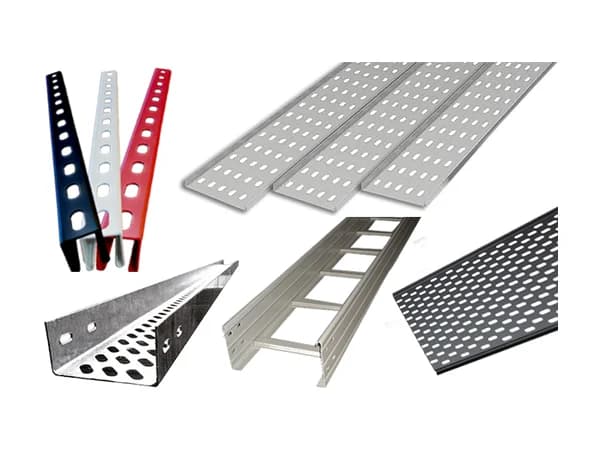

Cable Trays
Ladder, perforated and raceway, 50 to 450 mm wide in 2500 mm lengths.

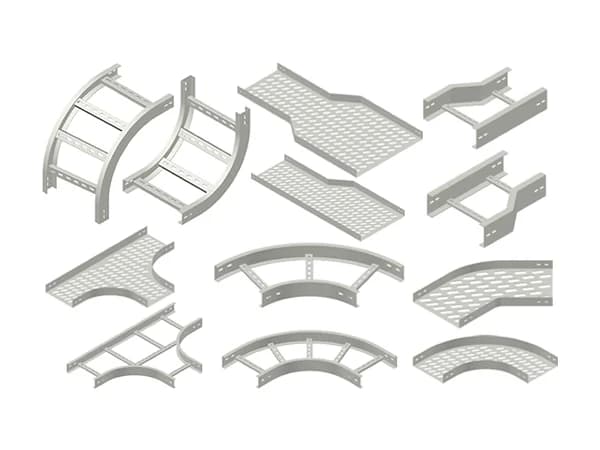

Tray Accessories
Bends, risers, tees, reducers and couplers in the same finish.
Brands we carry
Genuine, authorised-channel stock from the names trusted on this category.
Next step
Tell us what you need.
A list, a drawing or a BOQ is enough to start. You'll get genuine, authorised-channel product, the right sizing and a sharp price.
